| Auto Feeding CO2 Cloth Laser Cutting Machine for sale |
Features of Auto feeding CO2 cloth laser cutting machine:
1. The auto feeding system is added to save time and cost, and to improve work efficiency.
2. Feeding system adopts special words with mesa, pedrail automatic feeding device, convenient processing objects move freely on the surface of the cutting machine.
3. Cloth auto-collecting device is very convenient for users to collect cloth. The window is fireproof glass, let the machine more secure.
4. Liner guide rail and precision gear for transmission to ensure accuracy and high speed, open stainless meshed worktable to ensure convenient operation and wear resistance.
5. Crawler correction device can prevent crawler belt dislocation when working.
6. The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up with the advanced DSP-controled 3-phase stepper motor to ensure the working accuracy.
7. To fully support design software, such as CAD, CORELDRAW, PHOTOSHOP, friendly man-machine interface, live close to the industry needs.
8. CCD (Charge-coupled Device camera) is option. Automatic locating cutting machine with camera.
Applications of Auto feeding CO2 cloth laser cutting machine:
Cloth laser cutter applicable industrial: textile, garment, industrial fabrics, carpets, cloth toys, decorative cloth, automotive interiors and other industries.
Cloth laser cutter applicable materials: The machine used in clothing, textiles, leather, Maple leaf, Double-color sheet, acrylic, wood, paper, leather, etc.
Technical parameters of CO2 cloth laser cutting machine:
Model
|
STJ1626A
|
Working Area
|
1600*2600mm
|
Laser Power
|
80W/100W/130W
|
Laser Type
|
Sealed CO2 laser tube, 10.6µm
|
Laser Locating Precision
|
≤±0.01mm
|
Cooling Type
|
Water Cooling
|
Max. moving speed
|
1600mm/s
|
Max. cutting Speed
|
1400mm/s
|
laser Output Control
|
0-100% set by software
|
Controlling Software
|
AWC Control system
|
Graphic Format Supported
|
DST PLT BMP DXF DWG AI LAS.ect
|
Drive System
|
High-precision 3-phase stepper motor or servo optional
|
Auxiliary Equipments
|
Exhaust fan and air exhaust pipe
|
Power Supply
|
AC110V/220V±10%,50H/60HZ
|
Working Environment
|
Temperature 0-45°C,Humidity 5-95%
|
Machine detail pictures of Auto feeding CO2 cloth laser cutting machine:
 |
| Auto Feeding CO2 Cloth Laser Cutting Machine for sale |
 |
| Auto Feeding CO2 Cloth Laser Cutting Machine laser head |
 |
| Auto Feeding CO2 Cloth Laser Cutting Machine laser tube |
 |
| Control panel of Auto Feeding CO2 Cloth Laser Cutting Machine for sale |

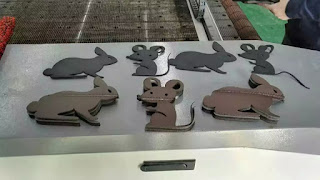

Samples of Auto feeding CO2 cloth laser cutter machine:
 |
| Projects of Auto Feeding CO2 Cloth Laser Cutting Machine for sale |
 |
| Projects of Auto Feeding CO2 Cloth Laser Cutting Machine for sale |
 |
| Projects of Auto Feeding CO2 Cloth Laser Cutting Machine for sale |
